PCB Relay
Miniature p.c.b. relay (6 -10a)
  • Miniature p.c.b. relay (6 -10a)

Miniature p.c.b. relay (6 -10a)

微型P.C.B.繼電器 （6 -10A）

Miniature PCB Relay
? DC coil (standard or sensitive), 500 or 650MW

? high physical isolation between adjacent contacts

? 8mm、6 kV(1.2/50 μ s) Isolation, coil contact

? anti flux penetration: RT II

? 5mm needle pitch

全國免費咨詢熱線：0755-84552800

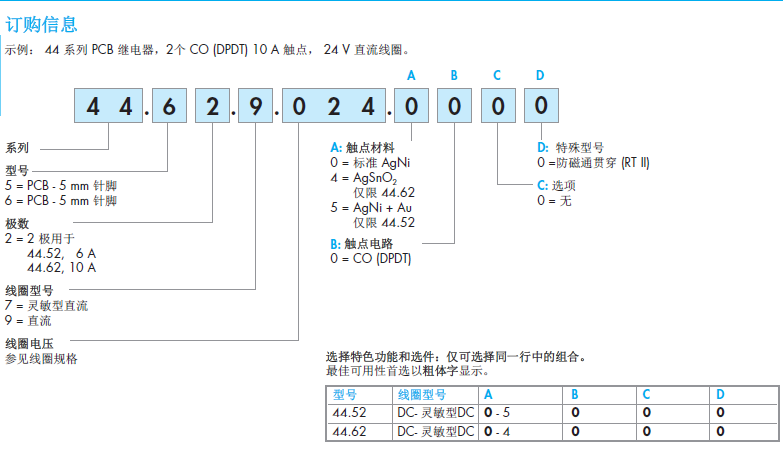

model
 forty-four point five two forty-four point six two
Contact specifications
Contact configuration 2 CO (DPDT) 2 CO (DPDT)
Rated current / maximum peak current a 6/10 10/20
Rated voltage / maximum switching voltage V AC 250/400 250/400
Rated load AC1 VA 1,500 2,500
Rated load ac15 (230 V AC) VA two hundred and fifty five hundred
Single phase motor rating (230 V AC) kw zero point one eight five zero point three seven
Breaking capacity dc1:30/110/220 V A 6/0.3/0.13 10/0.3/0.13
Minimum switching load MW (v/ma) 300 (5/5) 300 (5/5)
Standard contact material AgNi AgNi
Coil specification
Nominal voltage (UN) V AC (50/60 Hz) — —
V DC 6 - 9 - 12 - 14 - 24 - 28 - 48 - 60 - 110 - 125
Rated power ac/dc/ sensitive DC VA (50 Hz) /w/w —/0.65/0.5 —/0.65/0.5
Scope of work AC — —
Dc/ sensitive DC (0.73…1.5)UN/(0.73…1.7)UN (0.73…1.5)UN/(0.8…1.7)UN
Holding voltage ac/dc —/0.4 UN —/0.4 UN
Required voltage ac/dc —/0.1 UN —/0.1 UN
