Industrial relay
56 miniature power relay
  • 56 miniature power relay

56 miniature power relay

微型功率工業繼電器 12A

Miniature power relay

? AC and DC coils

? PCB or plug-in installation

? flange mounting options (Faston 187 terminals)

? lockable test buttons, mechanical indicators & LED indicators are available


全國免費咨詢熱線：0755-84552800

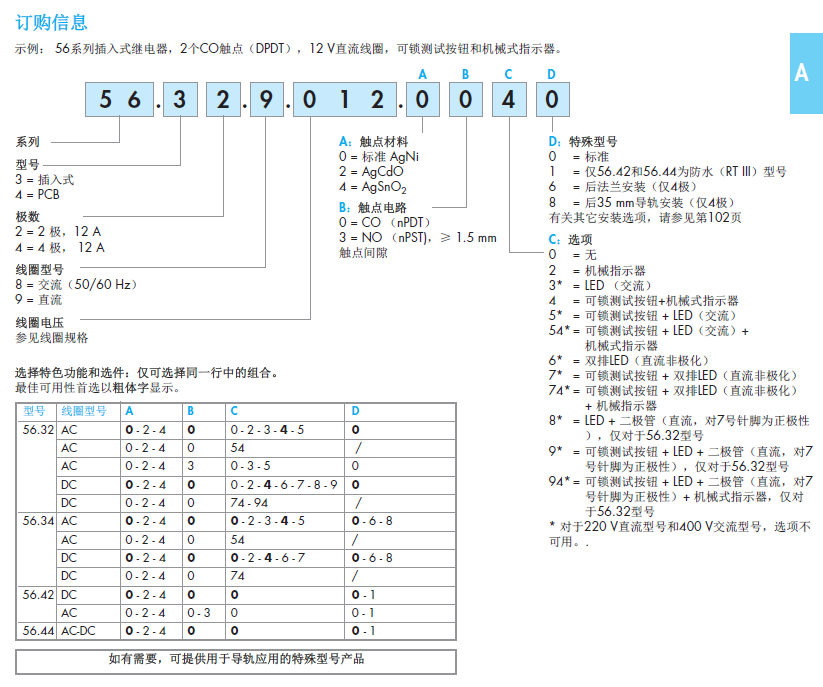

model
 56.32/56.34 56.32-0300
Contact specifications
Contact configuration 2 CO (DPDT) 4 CO (4PDT) 2 NO (DPST-NO) - ≥ 1.5 mm gap
Rated current / maximum peak current a 12/20 12/20
Rated voltage / maximum switching voltage V AC 250/400 250/400
Rated load AC1 VA three thousand three thousand
Rated load ac15 (230 V AC) VA seven hundred seven hundred
Single phase motor rating (230 V AC) kw zero point five five zero point five five
Breaking capacity dc1:30/110/220 V A 12/0.5/0.25 12/1/0.5
Minimum switching load MW (v/ma) 500（10/5） 500（10/5）
Standard contact material AgNi AgNi
Coil specification
Nominal voltage (UN) V AC (50/60 Hz) 6 - 12 - 24 - 48 - 60 - 110 - 120 - 230 - 240 - 400*
V DC 6 - 12 - 24 - 48 - 60 - 110 - 125 - 220 —
Rated power ac/dc/ VA (50 Hz) /w/w 1.5/1 2/1.3 1.5/—
Operating range AC （0.8…1.1）UN （0.85…1.1）UN
DC （0.8…1.1）UN （0.8…1.1）UN —
Holding voltage ac/dc — 0.85 UN/—
Required voltage ac/dc 0.2 UN / 0.1 UN 0.2 UN/—
