歡迎來到,深圳市芬德電子科技有限公司官網！

finder功率繼電器

聯系電話：0755-84552800

手機號碼：189-2606-1910

Product
Industrial relay
RR quick relay module
  • RR quick relay module

RR quick relay module

快速工業繼電器模塊 8A

Fast relay

? 4-pole changeover or changeover contact of 3No 1

? DC voltage

? operation time ≤ 3MS

? led command status indication

? 35mm guide rail (EN 60715) installation

? post socket type 90.21 installation

全國免費咨詢熱線：0755-84552800

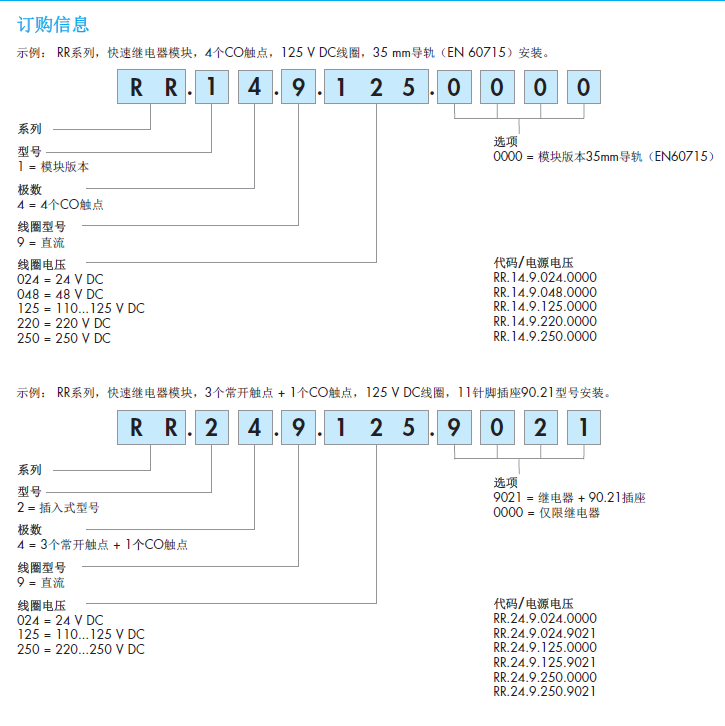

model
 RR. fourteen RR. twenty-four
Contact specifications
Contact configuration

4 CO (4PDT)

Three no (SPST-NO) and one CO (SPDT)
Rated current / maximum peak current a 8/15 8/15
Rated voltage / maximum switching voltage V AC 250/400 250/400
Rated load AC1 VA two thousand two thousand
Rated load ac15 VA four hundred four hundred
Single phase motor rating (230 V AC) kw zero point three zero point three
Breaking capacity dc1: 30/110/220 V A 8/0.3/0.12 8/0.3/0.12
Minimum switching load MW (v/ma) 300（5/5） 300（5/5）
Standard contact material AgCdO AgCdO
Coil specification

Nominal voltage (UN) V DC

 24 - 48 - 110…125 - 220…250 24 - 110…125 - 220…250
Rated power DC w <5 <3
Operating range V DC (0.8…1.1)UN (0.8…1.1)UN
