Industrial relay
Finder RB bistable relay
  • Finder RB bistable relay

Finder RB bistable relay

雙穩太工業繼電器

Bistable relay for controlling and transmitting signals

RB. Installation of 1435 mm guide rail (EN 60715)

RB. 22 11 pin socket type 90.21 installation

? 2 or 4 pole change-over contact

? DC voltage

? 2 coil type

? set and reset signals

? led command status indication

? cadmium free contact material

全國免費咨詢熱線：0755-84552800

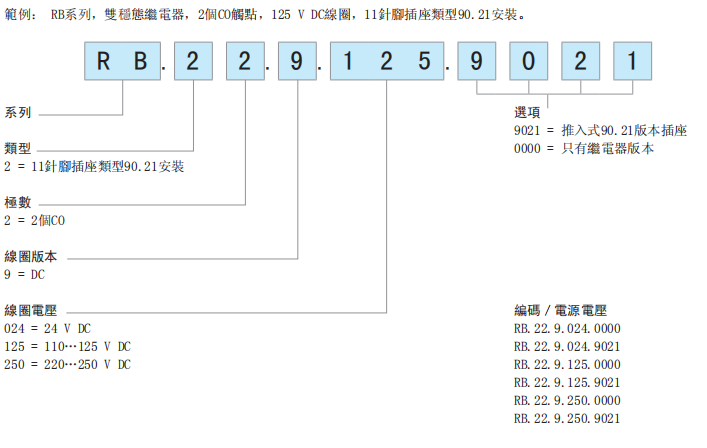

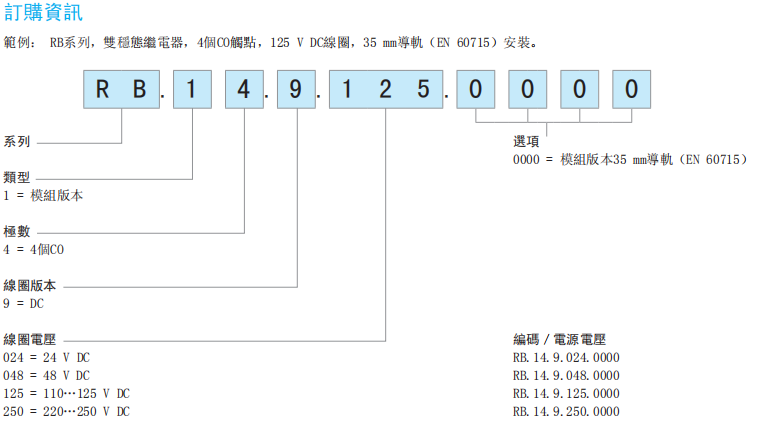

FINDER RB雙穩態繼電器選型




FINDER RB雙穩態繼電器選型
model
 RB. fourteen RB. twenty-two
Contact specifications
Contact configuration 4 CO (4PDT) 2 CO (DPDT)
Rated current / maximum peak current a 8/15 8/15
Rated voltage / maximum switching voltage V AC 250/400 250/400
Rated load AC1 VA two thousand two thousand
Rated load ac15 VA three hundred and fifty three hundred and fifty
Single phase motor rating (230 V AC) kw zero point three seven zero point three seven
Breaking capacity dc1:30/110/220 V A 8/0.3/0.12 8/0.3/0.12
Minimum switching load MW (v/ma) 300（5/5） 300（5/5）
Standard contact material AgSnO? AgSnO?
Coil specification

Nominal voltage (UN)

 V DC 24 - 48 - 110…125 -220…250 24 - 110…125 - 220…250
Rated power DC w seven four
Operating range V DC （0.8…1.1）UN （0.8…1.1）UN
